상세정보
Drone Tracker is an app used for visionbased object tracking for DJI drones The app allows you to perform visual tracking in real time using drones primary camera as the drone autonomously flies following the tracked object The app allows you to view the video stream from the drones primary camera during the flight operation with an overlay showing the tracked object
Drone Tracker app is used with DJI drones and requires a DJ RC controller to be connected to the device Following DJI drones are supported
1 Matrice 350 RTK
2 Matrice 300 RTK
3 DJI Mini 3
4 DJI Mini 3 Pro
5 DJI Mavic 3M
6 DJI Mavic 3 Enterprise Series
7 Matrice 30 Series
The app was developed by DeepMAVai

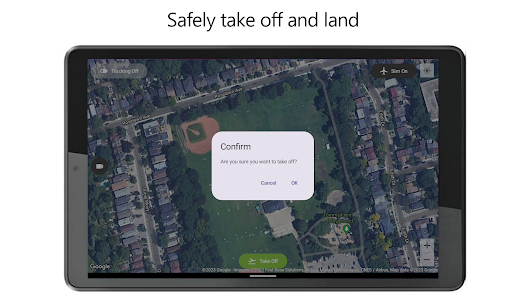

The app allows you to safely take off land and return to takeoff location by using the flight control panel on the bottom
Tracking
To perform a tracking flight first ensure the drone is powered on and connected to the RC Also ensure the RC is powered on and the device is connected to the RC via the USB cable You can check if the drone connection is successful by previewing the camera video by pressing the camera button in the app
When the camera video preview panel is visible tap anywhere inside the camera panel to select the object to track The app will show a white rectangle overlay over the camera preview panel Confirm you wish to start tracking in the popup dialog and the drone will start the tracking operation
While the drone is in tracking mode the button in the top left corner shows Tracking On Pressing that button allows you to stop tracking
Tapping anywhere inside the camera preview panel again allows you to select a different object to track You can do this even while tracking is in progress
While tracking is on the video preview panel shows the live drone camera video with an overlay showing the location of the tracked objects in the frame
When the drone is tracking after takeoff you can enable autonomous flight by pressing the Fly button in the bottom center panel The drone will autonomously yaw to follow the tracked object and fly towards it if the object moves further away Stopping autonomous flight will make the drone hover in place

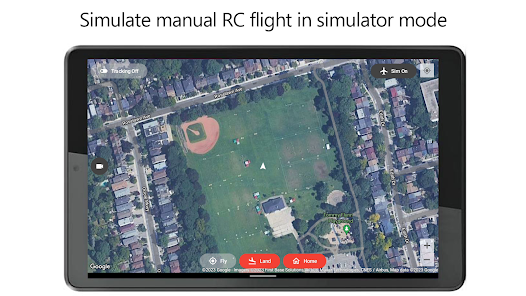

Simulator Mode
Drone Tracker app allows you to test your drone flight in simulator mode Simply start the app turn on your drone make sure the RC is connected to the drone and connect the device to the RC Pressing the Sim On/Off button switches between simulator and normal mode When the simulator is turned on the button will show the Sim On status
In simulator mode the drone will perform takeoff landing and return to home functions as if it was truly flying You can use the control sticks on the RC to fly the drone manually in simulator mode The map will display the drones simulated location All other functions of the app are enabled including video preview and tracking Note that the video preview shows the actual live feed from the drones primary camera and is not simulated
No account creation or login required Simply start the app and start flying
Make sure to fly responsibly and obey your local drone regulations
